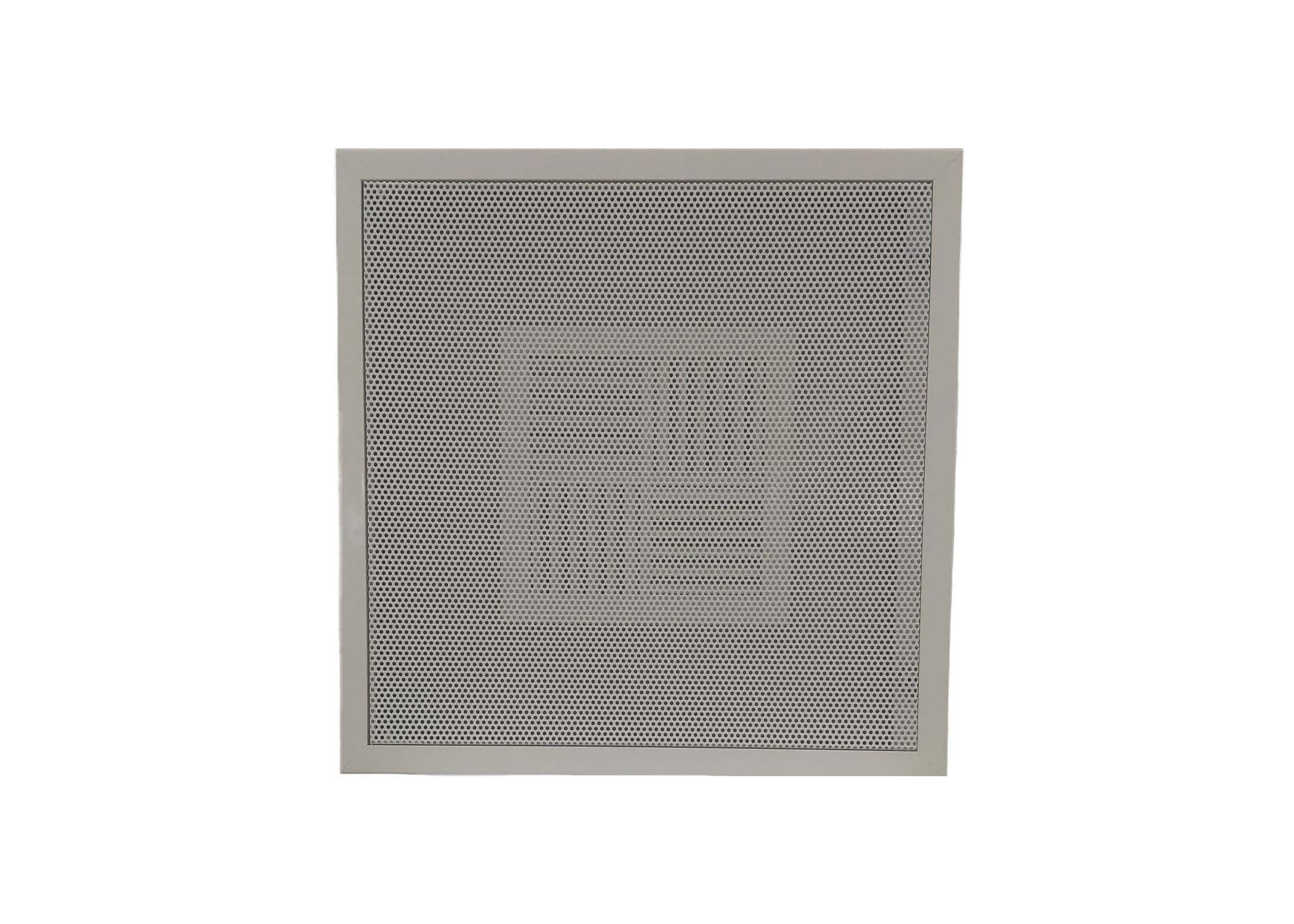

PMOD Series perforated face high capacity modular core directional diffusers offer a perforated face for smooth integration with the ceiling system. Field adjustment of the air pattern is easily accomplished by opening the perforated face plate and repositioning the modular pattern controllers. The core design provides an excellent horizontal pattern recom- mended for cooling, heating & ventilation in both application Constant & Variable Volume (CAV& VAV) systems.
FEATURES
• Steel perforated face, backpan with aluminum core
construction. (PMOD-S)
• Perforated face panel has 3/16” (5) diameter holes
staggered ¼” (6) on center.
• Four louvered air pattern modules are located
at the neck and can be easily repositioned in the field without tools.
• Adjustable 1,2,3 or 4 ways patterns, in a wide selection of sizes.
• Standard finish off White Ral 9010
OPTIONS
• Steel backpan with aluminum perforated face plate
and core (PMOD-A)
• Opposed blade damper available
• Any Ral Color for special finishes
