MODC diffusers are designed and built specifically for modularity and ease in air pattern adjustability. with MODC Series a single diffuser provides a multitude of air patterns, which can be easly set in field to meet each specific space requirement.

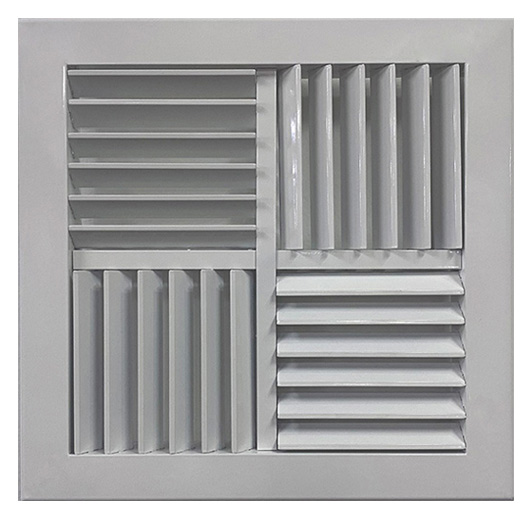

The key to the MODC Series diffuser lies in its four individual louver modules, which can be easily rotated in
various directions to provide a multitude of pattern arrangements. The diffusers can be easily set in the field because the modules are adjustable without the use of tools.
The louver module blades are specially designed for low
pressure loss and minimal see-through at all module settings.
The MODC diffusers can be ordered as 4Way , 3Way, 2Way or 1Way air pattern in various arrangements. They provide exceptional horizontal ceiling patterns effective for cooling applications .
FEATURES
• Extruded aluminum construction
• Several different air pattern can be achieved with a single diffuser
• Standard finish is Ral 9010
OPTIONS
• Opposed blade damper operated from the face of the
diffuser
• Any Color finish from Ral Chart
