APPLICATION

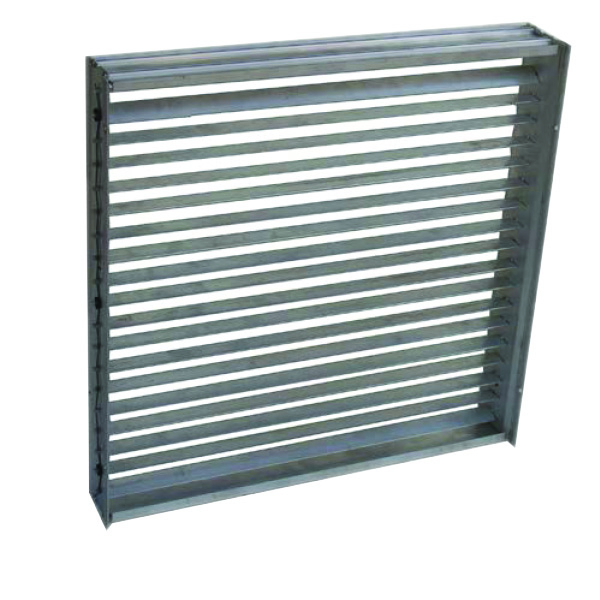

The Equalizing Grid is used to provide a uniform distribution of the airflow inside a duct or diffuser neck and also provides directional control. Where the length of a vertical duct diffuser is less than twice the diameter of the diffuser an equalizing deflector shall be fitted.
FEATURED STANDARD CONSTRUCTION
• Frame
- Constructed from heavy extruded aluminum.
• Blades
- Constructed from heavy extruded aluminum, 1.9 mm spaced from center to center.
- Blades are securely held in place with tension wire.
• Sizes
-Minimum size: 4”x3”
-Maximum size: 48” x24”
• Finish
- Brut (Mill) Finish.
• Feature
- AEG is factory mounted as an accessory above rectangular ceiling diffusers to provide uniform airflow over the surface of the diffuser face. The blades are individually adjustable one by one to allow additional control when needed.
