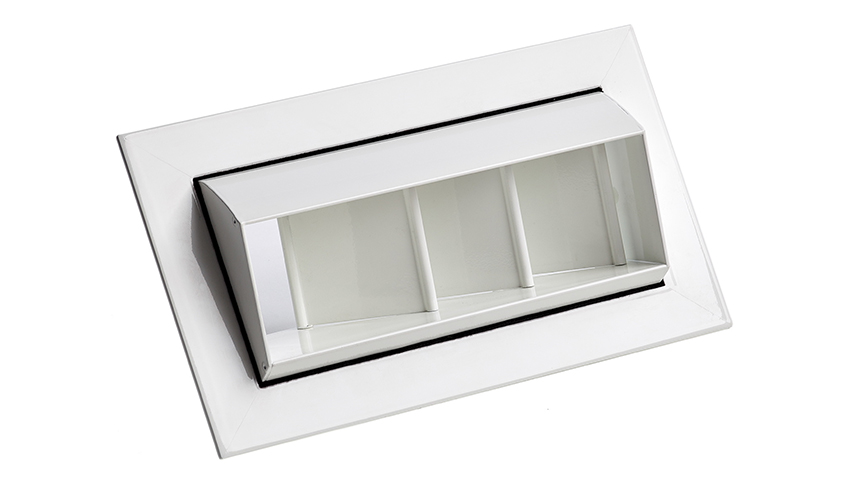

DRL DRUM LOUVER

DRL DRUM LOUVER
APPLICATION

The DRL series are designed to cover large enclosed spaces (shopping malls, warehouses, factories ….) that requires long or short throw patterns and trajectory control, this feature is provided by a moving drum whereas the blades can be adjusted apart.
The KBE Drum louver can supply air to areas that cannot be provided by conventional outlets due to architectural or structural conditions.

FEATURED STANDARD CONSTRUCTION

•FRAME:
Constructed from heavy extruded aluminum with 127/64 (36 mm) flange face border with a 13/16” (30mm) overlap margin.
•DRUM:
-Constructed from 1.6 mm high quality extruded aluminum.
-Constructed from 1.2 mm high quality extruded aluminum for 6’’ and 8’’ size.
-The drum can be adjusted on a horizontal axis to direct the air throw in the chosen direction from 0 to 30° degree up or down.
•BLADES:
-Blades are made with extruded aluminum flanges.
-Blades can be adjusted individually on the vertical axis.
•GASKET:
-Foam Gasket is fixed on the back of the frame.
•NYLON BRUSH:
-Nylon side brush seal is fixed around the drum.
•FINISH:
- RAL9010.
•SIZES:
- Minimum Sizes: 5” x 5”
- Maximum Sizes: 60” x 14”

OPTIONS

• Opposed blade damper (OBD) can be fixed on the drum louver.
• Plenum Box can be added.
• Mill finish (brut), all type of RAL finishing.

NB : 5 mm Clearance is deducted from your order size.
