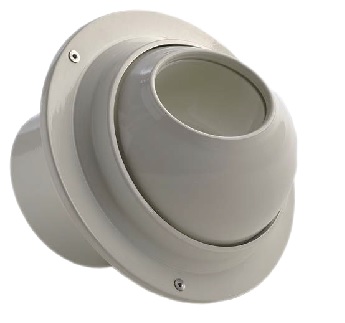

KJS100

KJS100
APPLICATION

The jet nozzle is designed for areas where a long throw is needed. The large free area allows handling of large airflow rates with low pressure loss. Adjustable core may be rotated through 360 and titled up to maximum of 30 from mid position to produce a wide variation in air jet angles.

FEATURED STANDARD CONSTRUCTION

•Material : Constructed from heavy gauge aluminum
•Flange: The flange-to-body gasket consists of two tandem felt strips for a leak-proof seal
•Finishing: RAL 9010

OPTIONS

• Panel manufactured from 1.0 mm Thickness aluminum
• 1,2,3,4 or more elements per panel
• Any RAL color upon request

NB: For order sizes 350 mm & 400 mm, KJS100 can only be installed with a combination of panel and rectangular plenum box
