APPLICATION

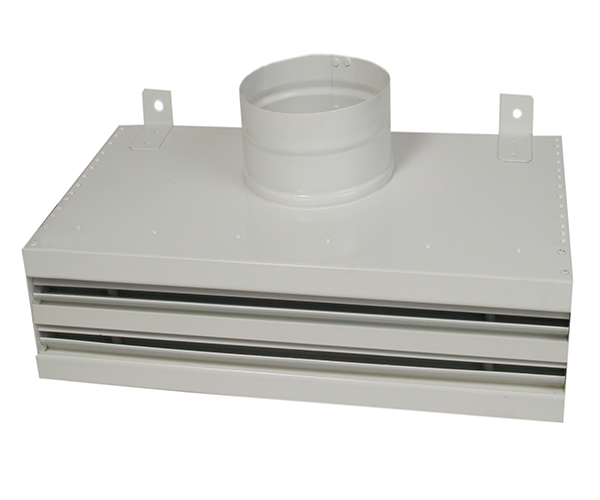

The PSD10 is available to architects and engineers who require design and construction superior to the industry standard.
For instance, the air pattern controller allows for 180°adjustment of the discharge direction as well as volume control, from the face of the diffuser.
The smooth aerodynamic curvature of the adjustable pattern controller produces a tight ceiling-hugging horizontal patterns even at low pressure
FEATURED STANDARD CONSTRUCTION
• Slot Diffuser:
- Constructed from extruded aluminum pattern controls
• Plenum Box:
- Constructed from 24Ga galvanized steel
• Blades:
- Constructed from extruded aluminum
- The fully adjustable deflection blades allow for air pattern to be controlled along the ceiling , straight down or at the same intermediate setting.
- The deflection blades are designed so that when in closed position, the air pressure tends to form a tight seal.
• Slots:
- Spacing: S = 3/4" or S = 1"
- Number: 1,2,3 or 4 Slots
• Finish:
- Plenum Box: Mill finish
- Slot Diffuser: RAL9010
• Standard Length Sizes:
- 20", 24", 40" , 48" , 80”.
• Standard Number of Inlets:
- 1 inlet per 1 meter
• Standard Inlet Sizes:
- 6", 8", 10" and 12"
N.B: - The available lengths of 12” inlet size are 40“ and 48”
OPTIONS
• With 15 mm clean liner insulation or 25 mm clean liner insulation
• Plenum Mounting Bracket
• Fixed and Sliding Damper constructed of aluminum sheets
• Any RAL color upon request
• Nonstandard module length
• Multiple number of inlets
• With shipped loose Round Volume Control Damper
