KJN201

KJN201

APPLICATION

KJN201 ring jet nozzle is designed for areas where a long throw is needed.
The large free area allows handling of large airflow rates with low pressure loss.
Adjustable core may be rotated through 360° and concentric deflection rings can be tilted up and down by 30° from mid position producing a wide variation in air jet angles.
Can be used in cooling or heating supply or return applications in ceilings, side walls or directly ducted.

FEATURED STANDARD CONSTRUCTION

•CONSTRUCTION:
- Constructed from 1 mm aluminum sheets.
•SIZES:
- Nominal sizes 100, 150, 200, 250, 300, 350 and 400 mm.
•FINISH:
- RAL 9010 White Finish.

OPTIONS

• All types of RAL finishing.

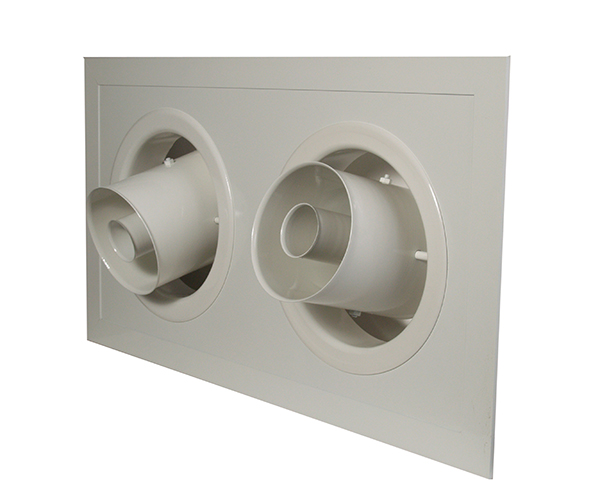

• Rectangular 1 mm Aluminum panel (with or without flange) for mounting up to 4 diffusers.
• Plenum Box.
• Plenum Box with Round Volume Damper.
