APPLICATION
Series DG offers the best solution for a completely sight proof design. Designed for installation in doors, walls or partition where constant passage of air and non-vision is desired. V shape blades not only block vision but also provide stiffness.
MODELS DETAILS
•DG-SF: V-shape blades with single frame.

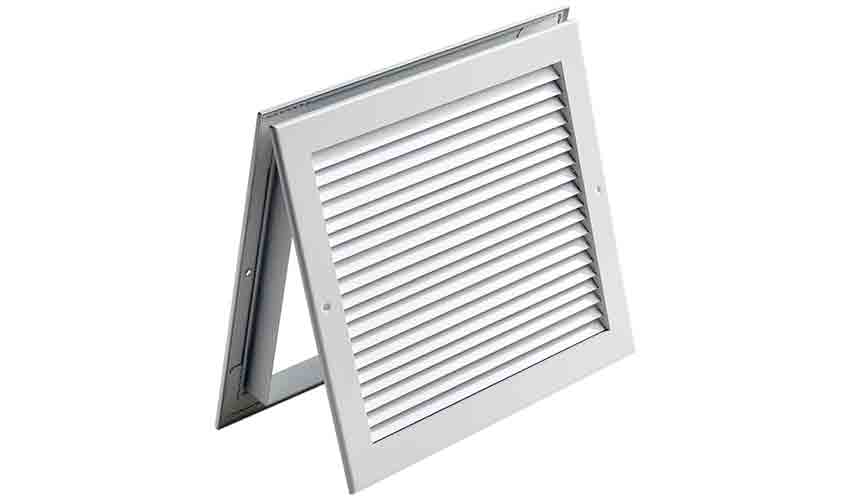

•DG-DF: V-shape blades with double frame which can be adjusted to fit any door thickness from 30mm up to 48mm as standard.
The maximum thickness can be extended to 63mm (21/2”) as optional construction.
FEATURED STANDARD CONSTRUCTION
•FRAME:
- 30mm (13/16”) flange constructed from heavy extruded aluminum material with interlocked corners and mechanically stacked to form a rigid frame.
•BLADES:
- V-shape blades constructed with 1mm thickness aluminum, spaced 12.7mm (1/2”) from center to center.
- Mechanically joined to the frame and securely held in place.
- Countersunk screw holes in the border for fixation.
•FINISH:
- Mill finish.
•SIZES:
- Minimum Sizes: 4” x 4”
- Maximum Sizes: 30” x 24”
OPTIONS
• Extendable frame for larger depth
• Satin Anodized finish or any RAL color upon request
• Concealed clips for fixation for DG-SF
• Foam gasket on the back of the frame
