APPLICATION

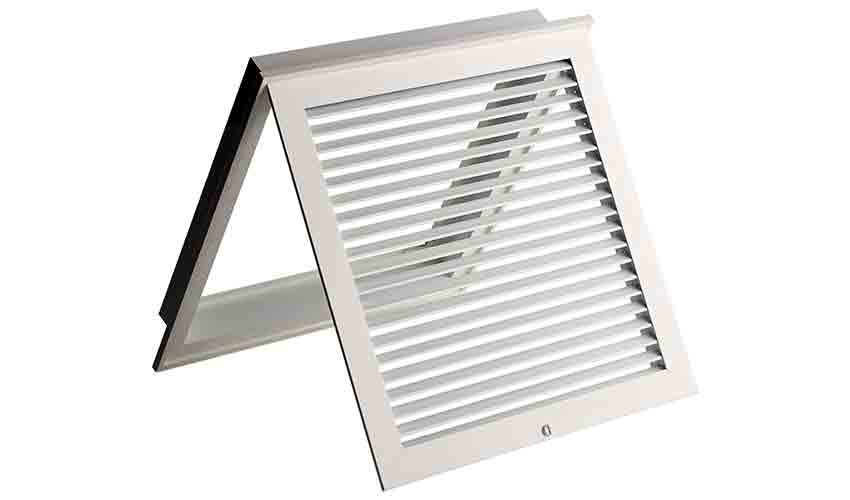

The ARG series is an ultimate choice for replacing service access trap in false ceiling by an access grille.
Heavy duty construction with mitered corners makes the ARG series the best choice for a return accessible grille.
FEATURED STANDARD CONSTRUCTION
•MODEL:
-ARG-45 : Horizontal extruded blades, fixed deflectors set at 45º.
-ARG-30 : Horizontal extruded blades, fixed deflectors set at 30º.
-ARGP : Blades are replaced by a perforated face.
-ARGEC : Blades are replaced by an egg crate core.
•FRAME:
-Inside frame is constructed from heavy extruded aluminum material,
11/4” (32 mm) flanges, with interlocked corners and mechanically stacked
to form a rigid frame.
-Outside frame is constructed from heavy extruded aluminum material,
2” (50 mm) flanges, with interlocked corners and mechanically stacked to
form a rigid frame.
•LOCKS:
- 1 slotted lock (2 slotted locks for big size)
•FINISH:
- Mill finish.
•SIZES:
- Minimum Sizes: 6” x 6”
- Maximum Sizes: 48” x 24”
OPTIONS
• 1” (25mm) Aluminum filter can be added.
• 2 slotted locks for removable inside frame.
• Galvanized insect screen can be added.
• All type of RAL finishing.
