LBD-R

LBD-R
APPLICATION

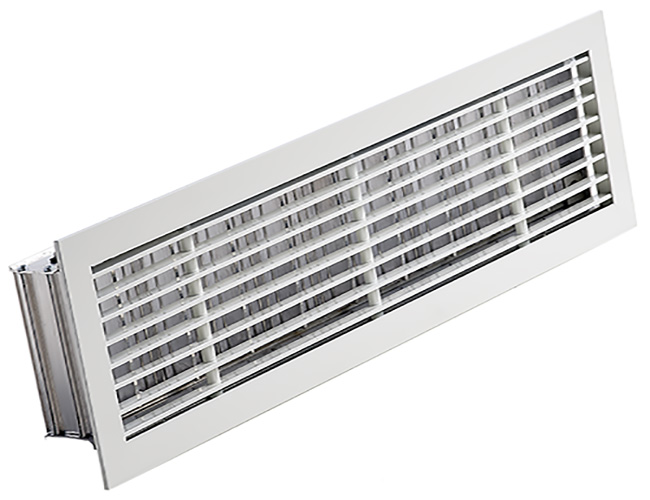

KBE extruded aluminum linear bar diffusers with rear blade meet architectural demands for a versatile supply and return air duct that blends with accents linear design concepts and it provides more comfort and more control on airflow direction in each grille section. Rear blades are individually adjustable.
LBD-R can be used on the supply or return positions of heating, cooling or ventilating system. Linear bar diffusers are made of high grade aluminum extrusions for maximum strength and corrosion resistance.

FEATURED STANDARD CONSTRUCTION

•FRAME:
- Constructed of extruded aluminum.
- Interlocked into heavy gauge cross bars to produce straight rigid core sections.
•BLADES:
- Constructed of extruded aluminum.
- Horizontal front blades: Multiple angles of deflection.(0º, 15º and 30º) placed on either 1/4”(6.35mm) & 1/2” (12.5mm) centers.
- Vertical rear airfoil adjustable blades spaced ¾” (19mm).
•SIZES:
- Minimum length of 8” and 3” height.
- Multi-sections are joined with alignment strips.
•FINISH:
- Standard finish is white color (RAL 9010).

OPTIONS

• 2cm frame & 3cm frame.
• Mitered corner for ceiling & wall application.(90° angle or any special angle).
• Other colors available upon request.
• Plenum box - insulated or non-insulated.
• With concealed clips or screw or concealed screw fastening.
• With foam gasket.
• With opposed blade damper (for a minimum height of 3’’& a minimum length of 8’’).
• Equalizing grid.
• BO metal blank-off black color (Ral 9005).
• LS light shield black color (Ral 9005).
• Insect screen.

N.B: A 1 cm clearance is deducted from your order neck size .
- For corner edge (wall) a drawing showing the airflow should be provided.
