APPLICATION

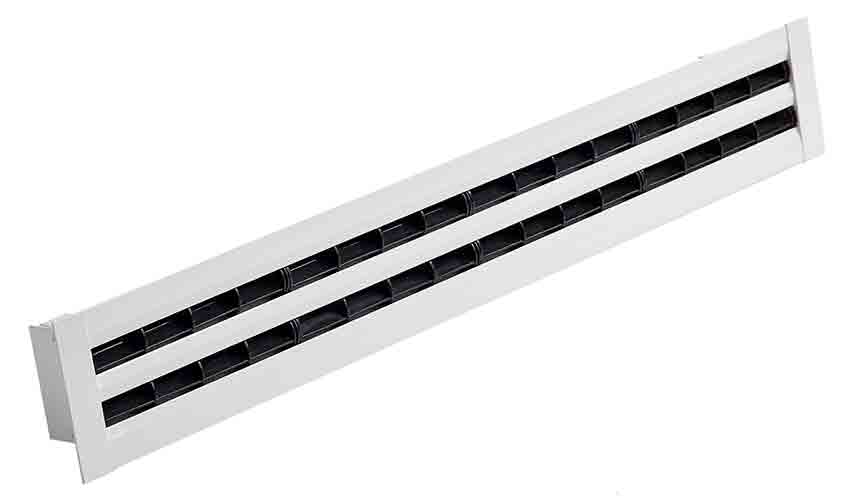

KVSLS series supply & return linear slot diffuser offer a high performance in a VAV outlet with pattern control and complete blank-off for true design flexibility.
Designed for highly efficient air distribution due to the pattern controller which is adjustable for each 150mm.
FEATURED STANDARD CONSTRUCTION
Fully adjustable "Air Distribution Control", the linear slot diffuser model:
KVSLS is available with 1 to 4 slots, it is one piece extrusion so there are no visible joints. The direction of air discharge can be adapted to the required room conditions. The control blades are set to customers’ requirements as blades are equipped with grooves that grip to the borders and allow easy changes of air direction subsequently. The deflector is designed for fully adjustable air pattern from vertical throw to fully horizontal.
FINISHING
- Standard finish is natural anodize.
- A variety of Ral Colors are available upon request.
- Deflectors colors are white or black.
OPTIONS
• Available with factory mounted plenum box 22Ga galvanized thick with or without internal lining.
• Available with multiple types of frames:
N: For normal exposed flanges
S: For drop exposed flanges
SN: For offset ceiling mounting
X: For special partition that can accommodate with wall partition in offices areas.
