APPLICATION

KBE extruded aluminum linear bar diffusers meet architectural demands for a versatile supply and return air duct that blends with accents linear design concepts.
Linear Bar Diffusers can be used on the supply or return positions of heating, cooling or ventilating system. Linear bar diffusers are made of high grade aluminum extrusions for maximum strength and corrosion resistance. Ideal for sidewall, sill or ceiling installation.

FEATURED STANDARD CONSTRUCTION

• FRAME:
- Constructed of extruded aluminum.
- Interlocked into heavy gauge cross bars to produce straight rigid core sections.
• BLADES:
- Constructed of extruded aluminum.
- Multiple angles of deflection.(0º, 15º and 30º) placed on either 1/4”(6.35mm) & 1/2” (12.5mm) centers.
• SIZES:
- Minimum length of 8” and 2” height.
- Length up to 114” full section for openings between 2“ and 8”. Multi-sections are joined with alignment strips for continuous appearance.
- Length up to 96” full section for 9” openings. Multi-sections are joined with alignment strips for continuous appearance.
- Length up to 80” full section for openings greater than or equal to 10”. Multi-section are joined with alignment strips for continuous appearance.
• FINISH:
- Standard finish is white color (RAL 9010).

OPTIONS

• 2cm frame, 3cm frame, removable core, frameless.
• Mitered corner for ceiling & wall application.(90° angle or any special angle).

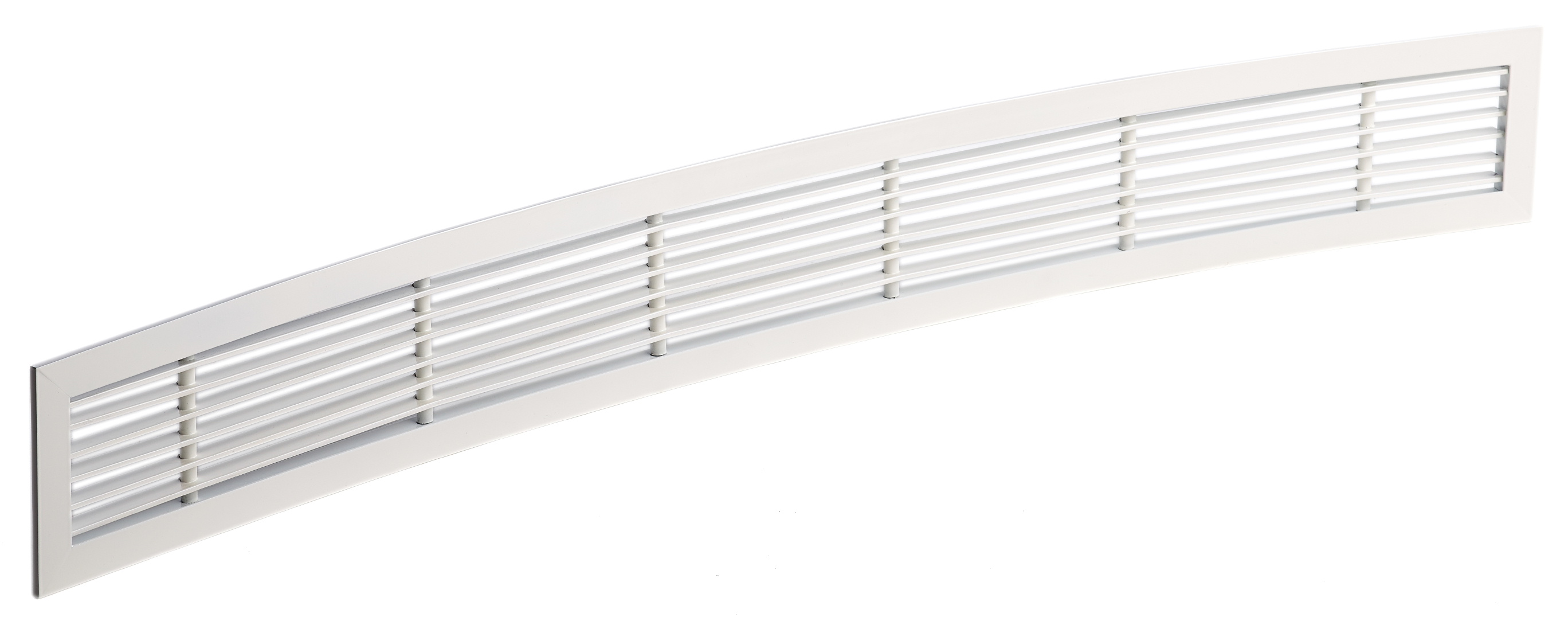

• Curved for ceiling and wall applications.
• Other colors available upon request.
• Plenum box - insulated or non-insulated.
• With S-spring clips.
• With foam gasket. (except for 2cm frame)
• With opposed blade damper (for a minimum height of 3’’& a minimum length of 8’’).
• Equalizing grid.
• BO metal blank-off black color (Ral 9005).
• LS light shield black color (Ral 9005).
• Insect screen.

N.B: A 0.5 cm clearance is deducted from your order neck size.
- For corner edge (wall) a drawing showing the airflow should be provided.
