APPLICATION

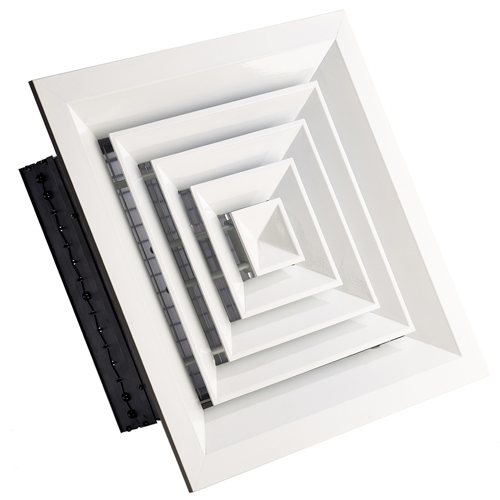

CD series directional diffuser provides an aesthetically pleasing solution to air distribution requirements, regardless of room configuration.
FEATURED STANDARD CONSTRUCTION
• FRAME:
Constructed from heavy extruded aluminum of 1. 25 mm thickness.
• CORE:
Constructed from heavy extruded aluminum assembled using a series of
integral cross braces which interlock to secure discharge vanes and preclude rattling.
• AIR PATTERN CORES:
Equipped with spring loaded latches, providing easy snap in/out core installation, no special tools required.
• THROW:
4 way throw
• FINISHING:
Anodized aluminum finish
OPTIONS
• Rubber gasket on the back of the frame
• Square to round transition
• 1,2 or 3 way throw
• RAL9010 or any RAL color upon request
• Opposed blade damper -Model: ADG-036
• Aluminum equalizing grid- Model: AEG-034
• Plenum box
